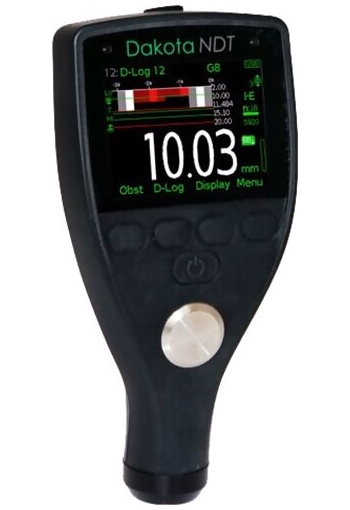

Name: Dakota Ultrasonics PCX8-DL Precision Thickness Gauges - Z-314-0001
Brand: Dakota Ultrasonics
SKU: 2184
Price: 2950.00 USD
Availability: InStock

Dakota Ultrasonics PCX8-DL Precision Thickness Gauges - Z-314-0001

See More Ultrasonic Thickness Gauges

Interface Echo (I-E) Echo-Echo (E-E) & Plastic Mode (PLAS) measurement modes

Measurement range from 0.15mm (0.006") to 25.40mm (1.00")

2-Point, 1-Point, Material & Factory Calibration options

The Dakota Ultrasonics PCX8-DL Precision Thickness Gauges - Z-314-0001 range comes with all the features and functionality necessary for precisely measuring material thickness on virtually any material.

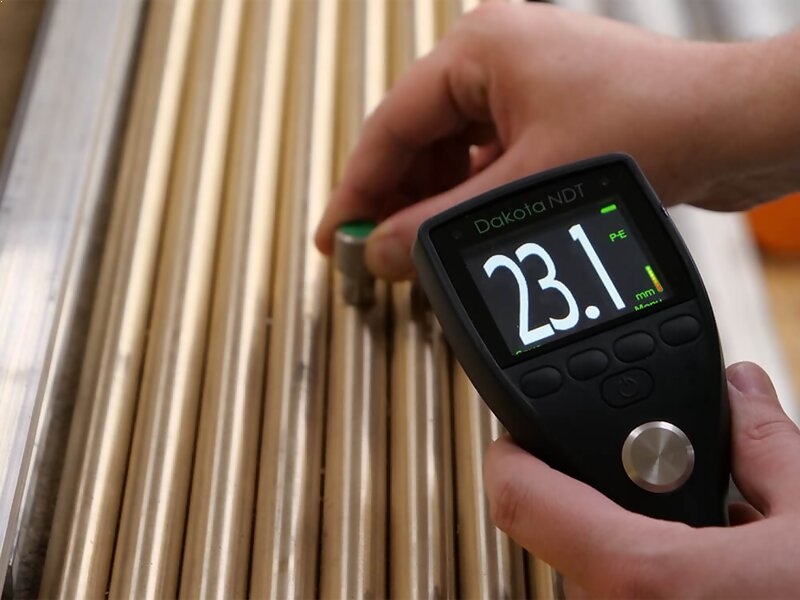

Accurate
Measures thin materials with pinpoint accuracy

Flexible & easy to use, the Dakota PCX Precision Thickness Gauge has a measurement range from 0.15mm (0.006") to 25.40mm (1.000") with up to ±1% accuracy, across three measurement modes; Interface Echo (IE), Echo Echo (EE) & Plastic mode (PLAS).

Powerful
Store each measurement for further analysis

Up to 100,000 readings can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into DakMaster™ for further analysis and reporting.

Wireless Connectivity
Seamlessly connect to PC

Connect the Dakota PCX Precision Thickness Gauge via Bluetooth® or USB to a PC & download the data into an inspection application or into DakMaster™ Software for instant report generation.

Customisable
Choose & customise the reading display

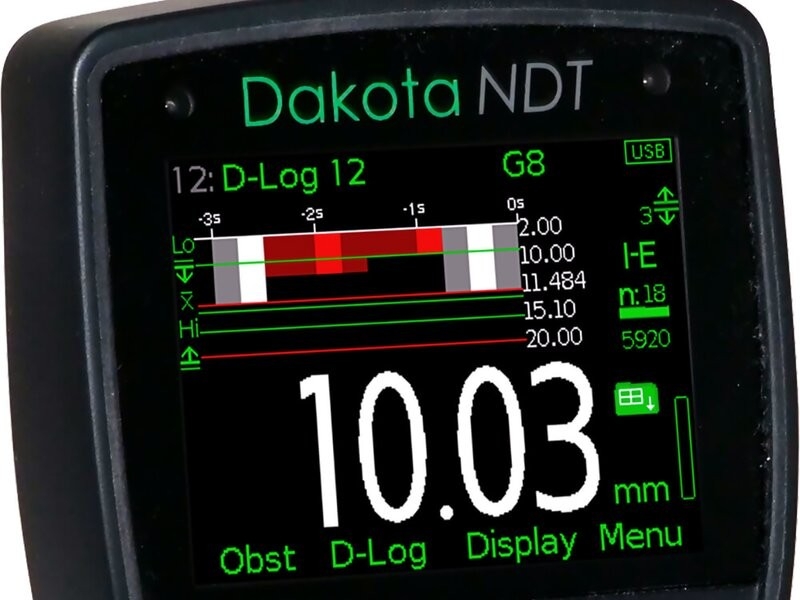

The Dakota PCX Precision Thickness Gauge has a choice of display modes allowing the user to select the most appropriate for their needs; Readings, Selected Statistics, Bar Graph, Run Chart & Differential Mode.

Measurement Modes

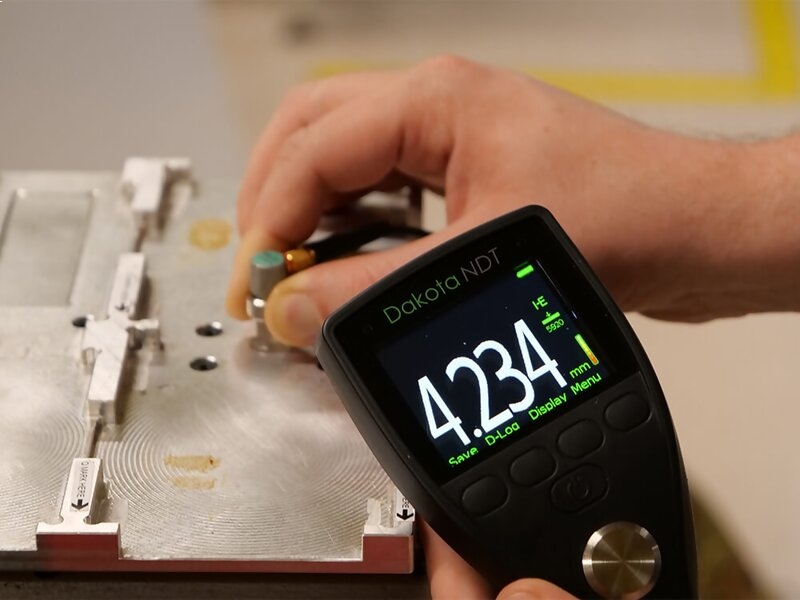

Interface Echo (IE); The total thickness from the top of any coating through to the material density boundary (typically the back-wall) is measured. Suitable for measurement of materials between 1.65mm and 25.4mm (0.065" to 1") thick.

Echo Echo (EE); ideal for measuring thin materials, the material thickness from the top surface of the material to the material density boundary (typically the backwall) is measured. Suitable for measurement of materials between 0.15mm and 10.15mm (0.006" to 0.4") thick.

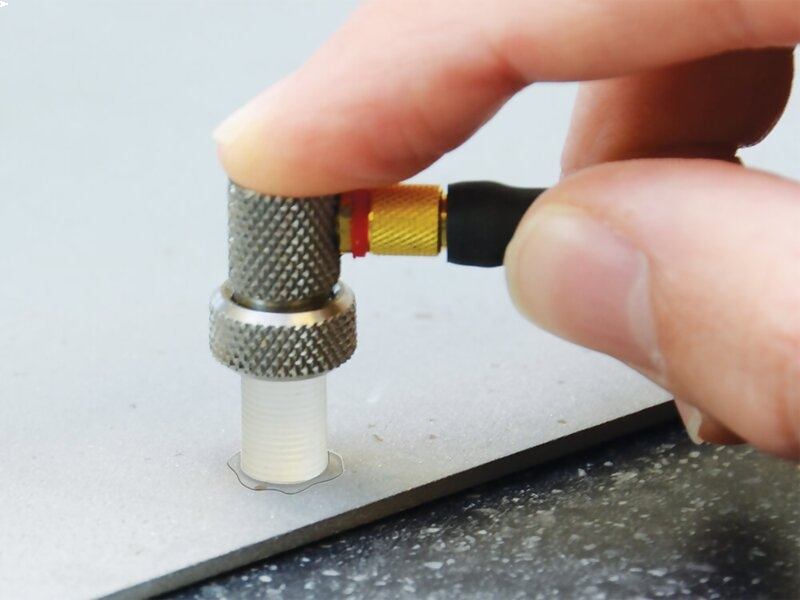

Plastic Mode (PLAS); specifically used for measuring very thin plastics between 0.15mm and 5mm (0.006" to 0.197") thick. A graphite delay line is required when using this mode.

User Definable Upper and Lower Limits

The Dakota PCX Precision Thickness gauge has user definable upper and lower limits with audible and visual pass/fail warnings allowing the user to compare readings to predefined values. The Dakota PCX Precision Thickness Gauge can store up to 40 pre-programmed limits which can be set for individual readings or for each batch.

If a measurement is taken which falls outside set limits, the reading value and the limit icon turn red, the red LED flashes and the alarm beeps providing immediate indication of problem areas.

Calibration Options

The Dakota PCX Precision Thickness Gauge has a number of calibration options including the 1-Point & 2-Point method and Velocity. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.

The Dakota PCX Precision Thickness Gauge allows users to store into memory up to three calibrations. Once saved the user can select a calibration without the need to re-calibrate the gauge. Using the gauge’s alpha-numeric function, calibration memories can be re-named to suit the calibration setting.

line
Kit Contents
line

Dakota PCX8-DL Ultrasonic Precision Thickness Gauge

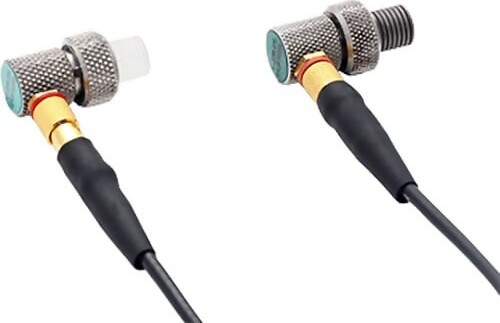

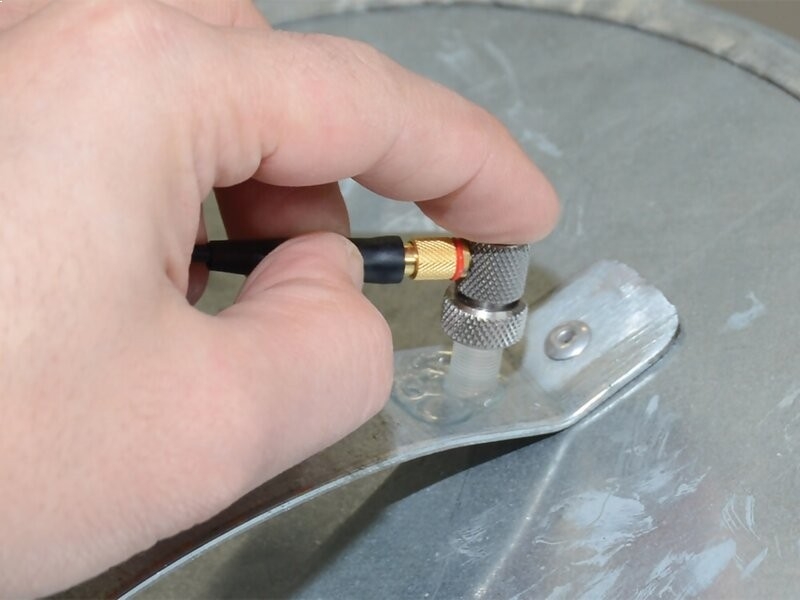

15MHz transducer (TXC15M0CM)
Ultrasonic Couplant
3 x screen protectors
Wrist harness
2 x AA batteries

Plastic Transit Case
Calibration Certificate
USB Cable
DakMaster™ Software
Operating Instructions

line
Features
line

Easy to use menu structure in multiple languages
Tough, impact, waterproof and dust resistant equivalent to IP64
Bright colour screen with permanent backlight
Ambient light sensor, with adjustable brightness
Scratch and solvent resistant display; 2.4" (6cm) TFT
Large positive feedback buttons
USB power supply; via PC
Gauge software updates1 via DakMaster™ Software
2 year gauge warranty
Limits: 40 definable audible & visual pass/fail warnings

Measurement Mode

Echo Echo (E-E)
Interface Echo (I-E)
Plastic Mode (PLAS)

Measurement Rate

4, 8, 16Hz

Thickness Range

E-E 0.15 - 10.15mm (0.006-0.400")
I-E 1.65 - 25.40mm (0.065-1.000")
PLAS 0.15 - 5.00mm (0.006-0.197")

Measurement Units

mm or inches
m/s, inch/μs
Repeatability / Stability Indicator

Display Mode

Reading
Selected statistics
Scan thickness bar graph
Readings and Differential
Run Chart
B-Scan cross sectional display

Selectable Reading Resolution

Lo; 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs
Hi; 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs

Statistics

Number of readings,n; Mean average, x ; Standard deviation, σ.
Lowest reading, Lo; Highest reading, Hi
Low / high limit value
Reading Range Value
Nominal Value
Number of readings below low limit
Number of readings above high limit

Calibration Options

Zero (using the integral zero disc)
1 - point
2 - point
Material selection; 39 preset materials
Factory; resets to the factory calibration
Velocity (speed of sound)
Known thickness value

Calibration Features

Calibration lock; with optional PIN Lock
Test calibration feature
Calibration memories: 3 programmable memories
Measurement outside calibration warning

Data Logging

Number of readings: 100,000
Number of batches: 1,000
Sequential batching
Grid batching
Fixed Batch Size Mode; with batch linking
Obstruct entry; add 'obst' into grid location
Delete last reading
Date & time stamp
Review, clear & delete batches
Display Mode
Alpha numeric batch names; user definable
Batch review graph

Data Output

USB to PC
Bluetooth® to PC, Android™ & iOS devices
DakMaster™ software

Transducer Probe Type

Single Element
Auto transducer recognition

line
Specifications
line

Certificate	Yes
Measurement Range
Interface Echo (IE)	1.65 - 25.40mm (0.065 - 1.00")
Echo Echo (EE)	0.15 - 10.15mm (0.006 - 0.400")
Measurement Accuracy
Plastic Mode (PLAS)	0.15 - 5.00mm (0.006 - 0.197")
Interface Echo (IE)	±0.015mm (1.65-2.99mm), ±0.5%(3.00-25.4mm)
Plastic Mode (PLAS)	±0.015mm (0.15-2.99mm), ±0.5% (3.00-5.00mm)
Operating Temperature	-10 to 50°C (14 to 122°F)
Power Supply	2 x AA batteries
Battery Life	Alkaline: 15 hours, Lithium: 28 hours
Gauge Weight	210g (7.4oz) - including batteries, without transducer
Gauge Dimensions	145 x 73 x 37mm (5.7 x 2.84 x 1.46"), without transducer
