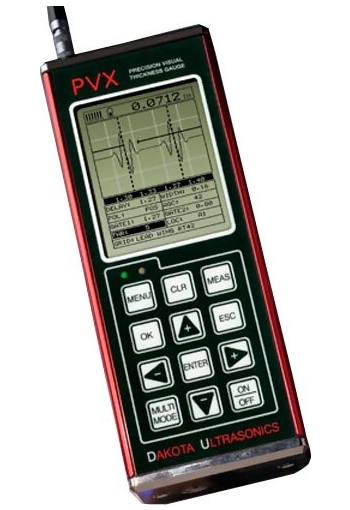

Dakota Ultrasonics PMX2-DL (PVX) Precision Ultrasonic A-scan Thickness Gauge Z-157-0004 / Z-157-0006 ideal for applications with minimum access or contact areas. Enhanced graphic scope Displays A Scan & B Scan for a cross section view
Resolution: 0.0001" (0.001 mm)
Datalogging: YES
The Dakota Ultrasonics PMX2-DL (PVX) Precision Ultrasonic A-scan Thickness Gauge Z-157-0004 / Z-157-0006 provides the flexibility necessary for both high resolution and penetration requirements.
It's ability to use a variety of single element transducers for specific applications: Standard Delay Line (acrylic and graphite tips for metals and thin plastics), Pencil Delay Line (tough access area on thin materials), and Contact transducers (variety of applications) makes it the perfect flexibel tool for very precise and delicate measurements. The adjustable resolution settings add to the PVX’s flexibilty.
The selectable viewing options provide the user with additional flexibility during operation: (RF waveform, +/- Rectified waveform, and Large Digits with Scan Bar.
The time based B-Scan feature displays a cross section of the test material. Displays the profile of the opposite surface of the material.
The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material and display the minimum measurement scanned.
Kit Contents
- Dakota Ultrasonics PMX2-DL (PVX) Precision Ultrasonic A-scan Thickness Gauge Z-157-0004 / Z-157-0006
- 3/16" 10Mhz transducer
- 4 oz. bottle of coupling fluid
- NIST Traceable Calibration Certificate
| - Data Transfer Software
- Serial Output
- 2 AA batteries
- Carrying case
- Instruction Manual
|
Features
- Hardware AGC gain control for multiple echo and thru-paint measurement.
- 2 year limited warranty
- Multiple calibration options: One Point, Two Point, or selection from a Material List.
- PVX comes complete with our Windows® PC software for transferring data to and from a PC.
- 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
- User-selected resolution of 0.001" or 0.0001" inch units and 0.01 or 0.001 in mm units
- PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs.
- Visual and audible alarm with hi and lo limit settings for specific application tolerances.
- The high speed scan feature
- 1/4" 15MHz Delay Line Probe p/n T-481-5507 also available when pencil probe is not needed. Specify TI-PVX-5507 to order as complete kit with this probe
Auto find features locates the detection point(s) and adjusts the display settings to bring the waveform into view. - Includes NIST-Traceableb calibration certificate
- CE Certified
Specifications
| Range in Steel | Interface-Echo Mode: Steel 0.05 1.0 in (1.27mm - 25.4mm). Plastics from .005in. (127mm).
Echo-Echo Mode: Steel .006in -.500in (.15mm - 12.7mm).
Pulse-Echo Contact Mode: Steel .040in - 10.0in (1mm - 254mm). Plastics from .01 |
| Resolution | (selectable) +/- .001in (0.01 mm), or +/- .0001in - (.001mm). |
| Velocity Range | .0492 to .3936 in./ms
1250 to 9999 meters/sec |
| Units | English & Metric |
| Memory | 16 megabit non-volatile ram. |
| Data Logger | 12,000 readings and waveforms (alpha numeric storage). |
| Display | 1/8 in. VGA grayscale display |
| Setups | 16 factory and 48 user-defined setups. |
| Display Views | A-Scan Rectified +/- (half wave view) RF (full waveform view)
B-Scan Time based cross section view. Display speed of 15 secs per screen.
Large Digits Standard thickness view. Digit Height: 0.400 in (10mm). |
| Power Source | Three 1.5V alkaline or 1.2V NiCad AA cells |
| Battery Life | Typically operates for 150 hours on alkaline and 100 hours on NiCad |
| Power off | Auto power off if idle 5 min. |
| Operating Temperature | -14° to 140°F (-10° to 60°C). |
| Size | 2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm). |
| Weight | 0.4 kg (0.9 lbs ) |
| Warranty | Gauge: 2 Years
Probe: 90 Days |
PVX - Delay Line
| P/N | Description | Standard / Optional | Image |
| X-152-0000 | 1/16” Dia. x .450" L | Standard | |
| X-752-0000 | 1/8" Dia. x .450" L | Optional | |
TI-PVX-5507 - Delay Line
| P/N | Description | Standard / Optional | Image |
| X-231-0000 | 1/4" x 3/8" for all metals (Short) | Standard | |
| X-241-0000 | 1/4" x 1/2" for all metals (Long) | Standard | |
| X-633-0000 | 1/4" x 3/8" Graphite Tip for thin plastics (Graphite Short) | Standard on "-GT" models | |
| X-532-0000 | 3/16" x 3/8" Conical Tip for all metals (Cone) | Optional | |
| X-132-0000 | 1/8" x 3/8" Conical Tip for all metals (Cone) | Optional | |
| X-533-0000 | 3/16" x 3/8" Graphite Tip for thin plastics (Graphite Cone) | Optional | |
Related Products
F-000-7000
V-Block Probe Holder - The F-000-7000 V-Block Probe Holder Pencil Probe transducer holder provides enhanced control when measuring small circular items and other curved surfaces. It can also be used on flat surfaces for better repeatability and quick perpendicular placing of the probe to achieve quick and easy repeatable measuring results
| |
Downloads
F.A.Q.
Do Dakota Ultrasonics Thickness Gauges require any training for use?
No. Dakota Ultrasonics Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.
Are Dakota Ultrasonics Thickness Gauges calibrated at the factory?
Yes. Dakota Ultrasonics Thickness Gauges arrive fully calibrated and ready to measure.
Do Dakota Ultrasonics Thickness Gauges include Certificate of Calibration?
Yes. Dakota Ultrasonic Thickness Gauges includes NIST-Traceable Calibration Certificate, CE-Certified
Can I measure the thickness of non-metallic materials like plastic and rubber with Dakota Ultrasonics Thickness Gauges?
Yes. Dakota Ultrasonics Thickness Gauges features several preprogrammed sound velocities for common materials.
Can Dakota Ultrasonics Thickness Gauges measure cast/ductile iron or cast aluminum?
Yes. Dakota Ultrasonics Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
