Calibrate to known thickness or Select Material from 8 Presets

---

Resolution: .001" (0.01 mm)

---

Includes NIST-Traceable Calibration Certificate, CE-Certified

---

5-Year Warranty, Made in USA

---

Datalogging: NO

---

Total Measuring Range (depends on material and transducer/probe type) 0.025 - 36.000 inches 0.63 - 914.4 mm

Measuring Range on Steel (with standard T-102-2000 probe) 0.040 - 8.00 inches 1.00 - 199.9 mm

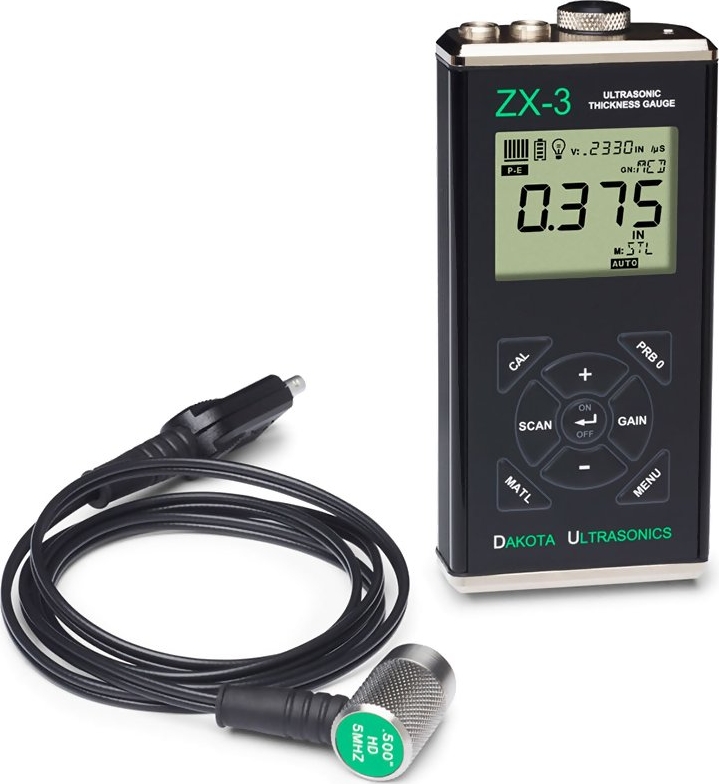

The Dakota Ultrasonics ZX-3 Ultrasonic Wall Thickness Gauge Z-302-0001 / Z-302-0003 with T-102-2000 Probe accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! It can measure thickness up to 36 inches (915 mm), depending upon the material and transducer.

The Dakota Ultrasonics ZX-3 Ultrasonic Wall Thickness Gauge Z-302-0001 / Z-302-0003 with T-102-2000 Probe combines the best features of the ZX-2 allowing the operator to select from 8 preset materials as well as program 2 custom material velocities, plus allows free adjustment of the velocity as desired and allows the end-user to calibrate to a sample of known thickness where the velocity is automatically calculated. Additionally, to optimize linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The optimal velocity is automatically calculated to provide the highest accuracy and linearity between the low and high calibration points.

The Dakota Ultrasonics ZX-3 Ultrasonic Wall Thickness Gauge Z-302-0001 / Z-302-0003 with T-102-2000 Probe can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed.

The ZX-3 probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation under the toughest field conditions

Kit Contents

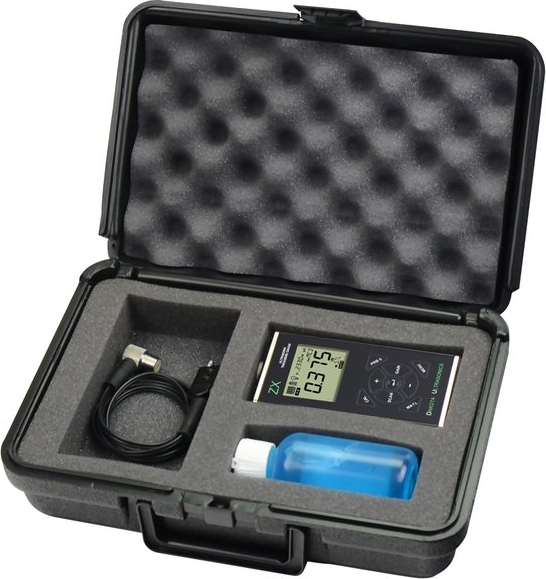

Dakota Ultrasonics ZX-3 Ultrasonic Wall Thickness Gauge Z-302-0001 / Z-302-0003 with T-102-2000 Probe Probe T-102-2000 4 oz. bottle of coupling fluid 2 AA batteries NIST Traceable Calibration Certificate Carrying case Instruction Manual

Features

• Includes NIST Traceable Calibration Certificate
• Resolution of 0.001 inch (0.01 mm)
• Switch-selected units for inches or mm
• User-selected Manual or Auto Zero of Transducer
• User can select from 8 preset materials as well as program 2 custom material velocities
• Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
• 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
• Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
• Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
• Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
• The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
  to provide trouble-free operation under the toughest field conditions
• For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
• High visibility LCD Display is readable in all lighting conditions and temps as low as 22 °F (-30 °C)
• LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
• Operates on two (2) AA Batteries - 45 hours continuous operation
• Selectable Backlight ON/OFF/AUTO
• 5 Year Warranty, CE-Certified and Made in USA

Specifications

Total Measuring Range (Steel)	0.025 - 36.000 inches 0.63 - 914.4 mm (depends on material and transducer/probe type)
Measuring Range (Steel)	0.040-8.000 inches 1.00-199.9 mm (with standard transducer T-102-2000)
Resolution	0.001 inch (0.01 mm)
Measuring Mode	Pulse-Echo (P-E)
Velocity Range	0.0120 to .7300 in/μs. 305 to 18,542 meters/sec
GAIN Adjustment	Adjustable GAIN 5-position (VLOW, LOW, MED, HIGH, VHI), in 3dB steps, 40-52dB
Probe (Standard)	1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-3300
Probes (optional)	1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
Probe Wearface	PEEK (Polyethylethylkytone)
Cable	1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
LCD Display	Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
Display Backlight	Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Display Update Rate	10 Hz (10 updates/sec)
Temp. Limits	Ambient: -30 to 75° C (-22 to 167° F) Material: -20 to 100° C (0 to 200° F) High temperature probes available
Battery Type	2x AA batteries (rechargeable batteries can be used)
Battery Life	45 hours continuous use
Weight	308 grams (11 ounces)
Dimensions	63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
Accessories	Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Housing	Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Housing Rating	IP65
Certifications	NIST Traceable and MIL-STD-45662A
Keypad	Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys
Pulse Repetition Frequency (PRF)	200 Hz (200 pulses/sec)
To Lock Settings	With gauge powered off, press and hold the "+" key while powering on the gauge The LOCK icon will be illuminated on the Display
To unLock Settings	With gauge powered off, press and hold the "-" key while powering on the gauge The LOCK icon will turn off
Warranty	Gauge: 5 Years Probes: 90 Days

Measuring Limits

	Minimum Radius for Convex Surfaces	0.350" (8.89 mm)
	Minimum Radius for Concave Surfaces	3" (76.2 mm)
	Minimum Headroom	1" (25.0 mm)
	Minimum Sample Diameter	0.150" (3.8 mm)
	Minimum Substrate Thickness - F	na
	Minimum Substrate Thickness - NFe	na
