Name: ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge for Plastics, Glass, Titanium, and more
Brand: ElektroPhysik
SKU: 2176
Price: 6145.00 USD
Availability: InStock

ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge for Plastics, Glass, Titanium, and more

See More Ultrasonic Thickness Gauges

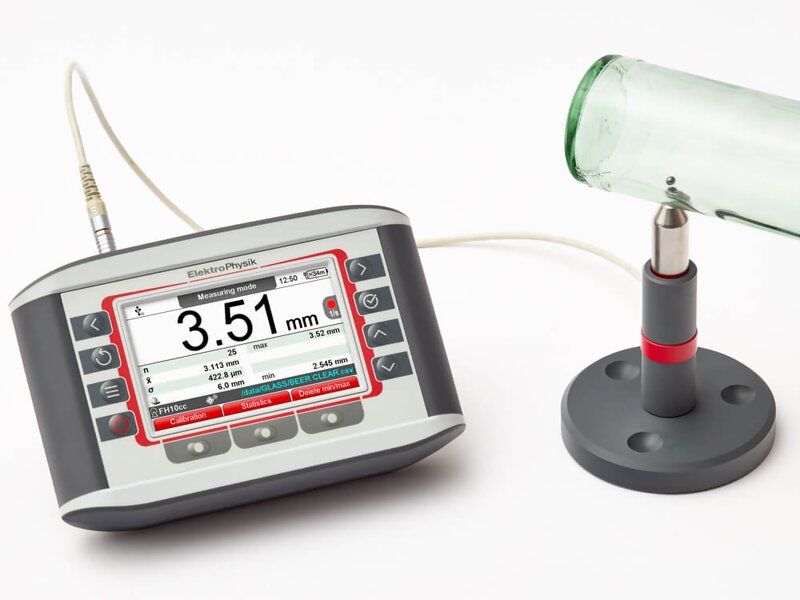

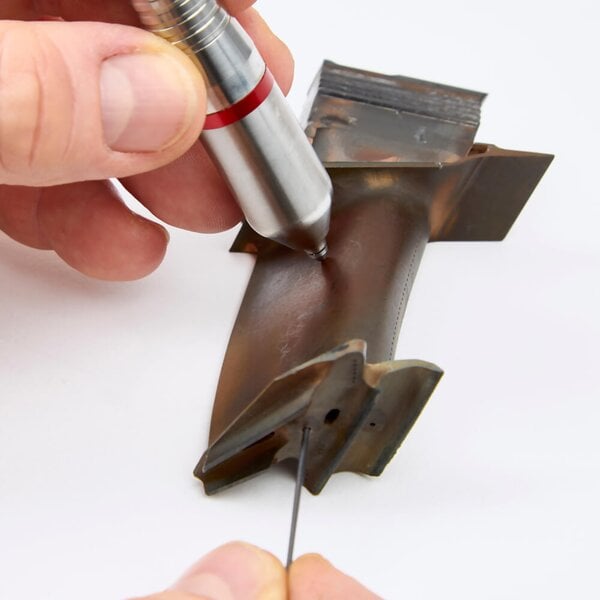

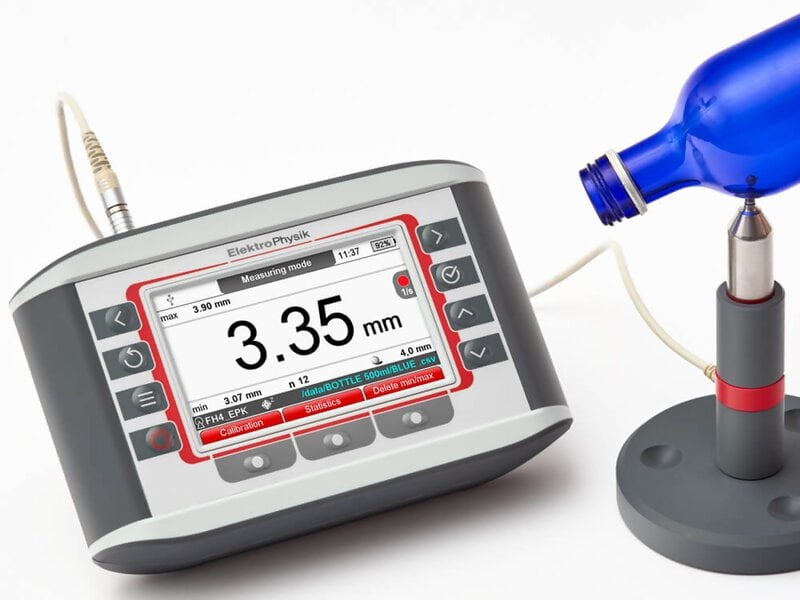

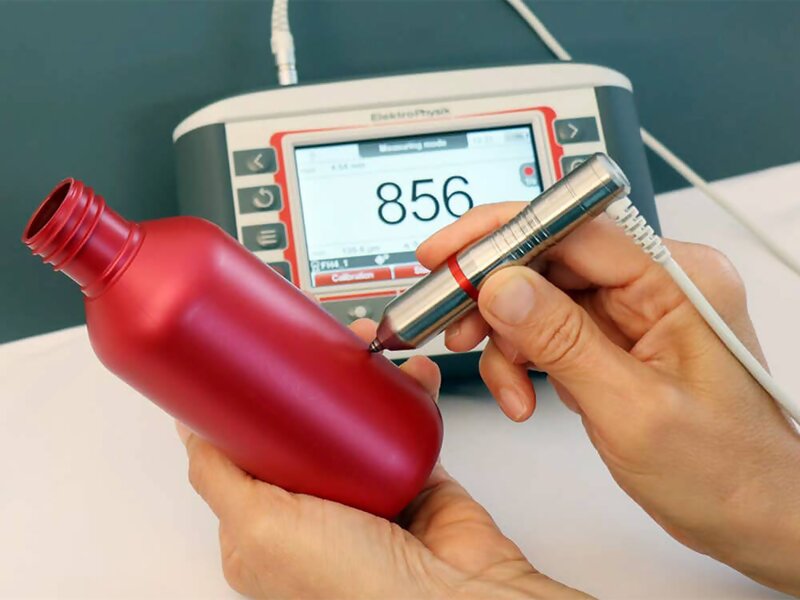

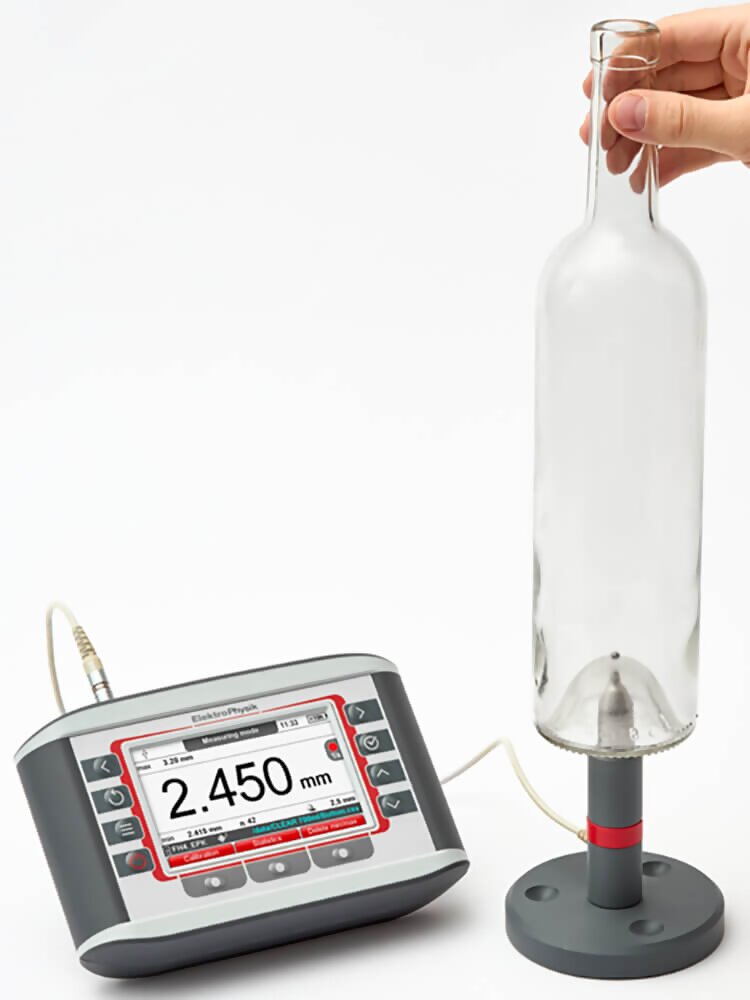

Magnetic Wall Thickness Gauge for Plastic Bottles, Titanium Turbine Blades, and more

Ranges up to 24mm / 1"

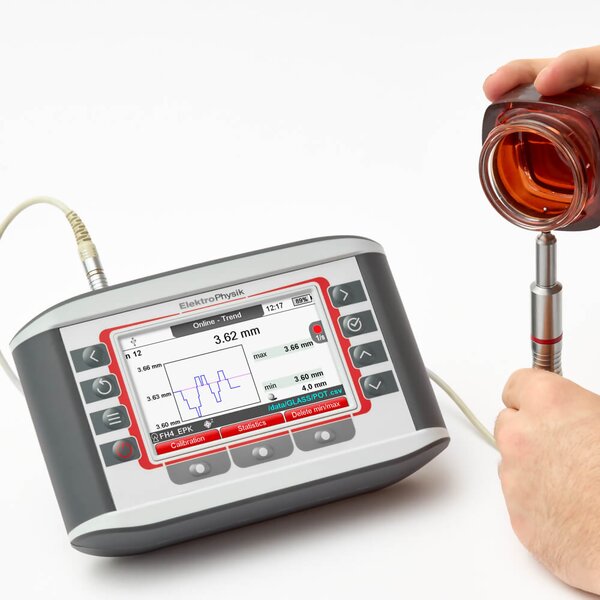

The ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge is designed for non-destructive measurements up to 24mm / 1". The ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge offers straightforward thickness measurements of non-magnetic materials such as plastic, glass, synthetics, non-magnetic metals, and composites. Components with complex geometries can also be measured with ease.
An intelligent SIDSP sensor enables the ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge to provide high-precision measurement and reproducibility while compensating for the influence of temperatures in the measuring environment and in the object being measured. A wide range of sensors allows to adapt to different applications and measuring tasks.

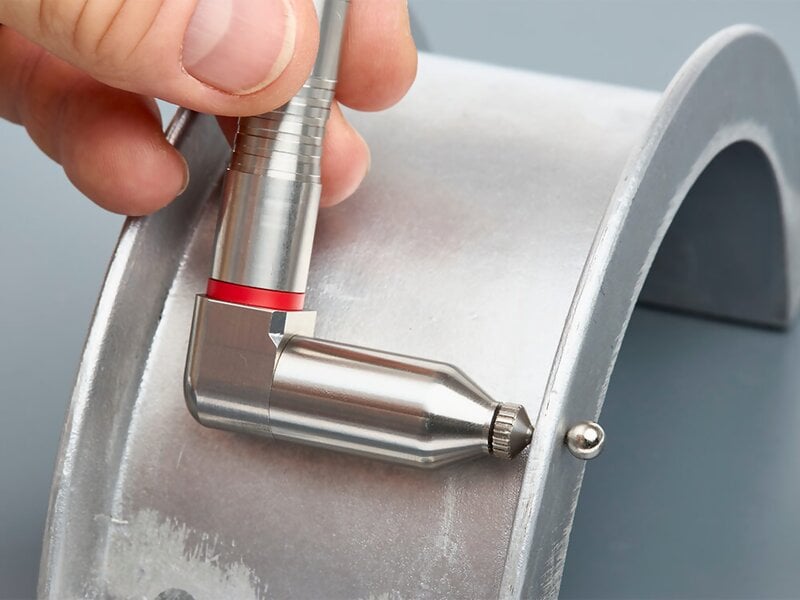

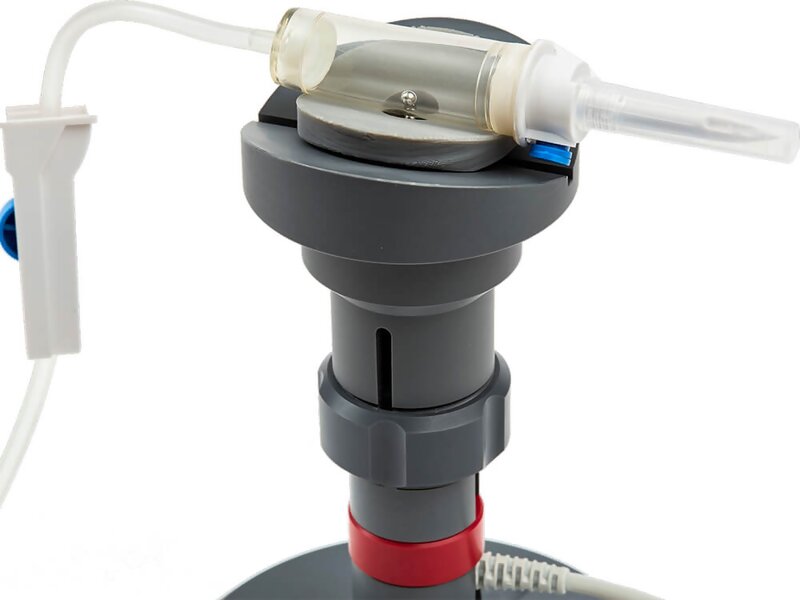

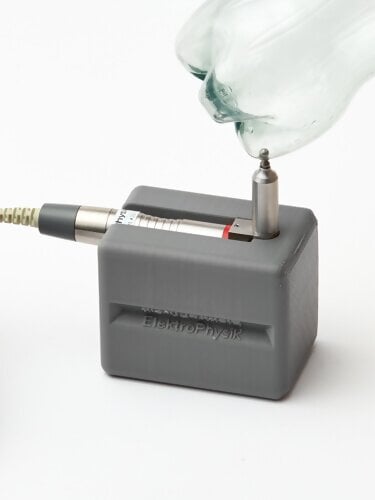

Thickness is determined by measuring the distance of a reference ball or wire to the sensor tip. The reference ball is attracted by a powerful magnet positioned directly behind the sensor tip. The steel target balls are treated according to a specialized ElektroPhysik procedure which allows reproducibility of test results of up to 0.5%.

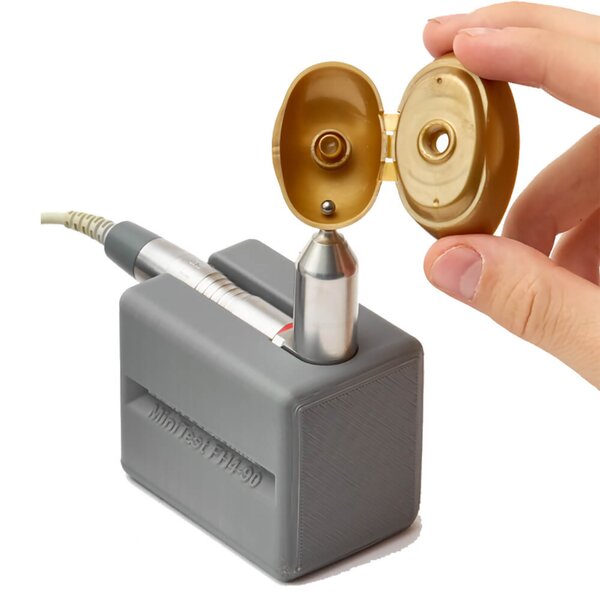

Special features such as an automatic calibration function for zero calibration and direct transfer of readings into a spreadsheet or CAQ system complement the high user comfort provided by the intuitive menu operation.

line
Kit Contents
line

ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge
Solid plastic case for transport and storage
8 AA NiMH batteries (integrated, chargeable via USB)
USB connection and charging cable

line
Features
line

High precision wall thickness measurement up to 24 mm
Exceptional accuracy and repeatability through sensor-integrated digital signal processing (SIDSP®)
2 million readings storable in more than 200 batches
Up to 20 readings per second
Wear-resistant sensors with hardened sensor tips
Direct data import into evaluation software
Bluetooth, USB and RS 232 C interfaces
IP 65 Water and Dust Resistance

line
Specifications
line

Low range resolution	0,1 μm (FH 4) 0,2 μm (FH10)
Repeatability	< ± (1 μm + 0,5 % of reading)
Measuring principle	Magnetostatic
Logging rate	1, 2, 5, 10, 20 readings per second (selectable)
Data memory	2,000,000 measured values in more than 200 measurement series
Calibration	Factory, Zero, Zero + up to 4 points
Measuring units	metric (μm, mm), imperial (mils, inch)
Statistical charting	Numeric, trend, and histogram
Interfaces	USB, Bluetooth, RS 232 C
Operating temperature	-10 °C - 60 °C(Storage temperature: ―20°C to +80°C)
Dimensions and weight	195 mm x 120 mm x 50 mm / 775 g (device with batteries)
Power supply	8 x NiMH AA rechargeable batteries chargeable via USB

line
Technical Details
line

Probe	Overall Range	Ball Diameter	Ball Range

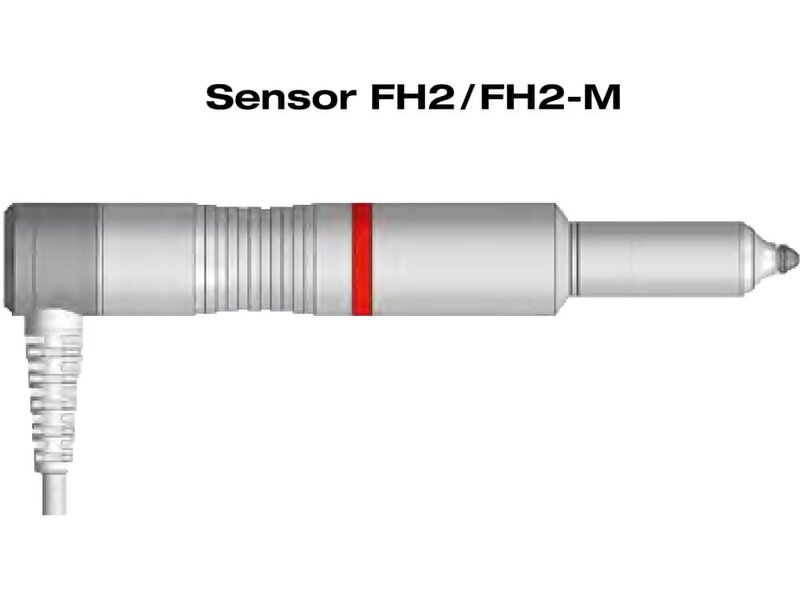

FH2 FH2-90		1.5mm 2.5mm 4.0mm	0 … 0.6mm 0 … 1.3mm 0 … 2.3mm
FH2-M FH2-M-90		1.5mm 1.5mm Magnetic 2.5mm 3.0mm Magnetic 4.0mm	0 … 0.6mm 0 … 2.0mm 0 … 1.3mm 0 … 4.5mm 0 … 2.3mm

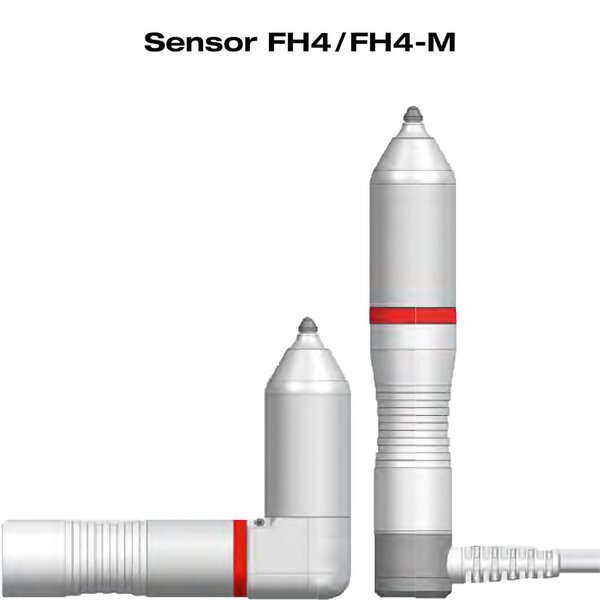

FH-4 FH4-90	0 - 6 mm 0 - 0.236"	1.5mm 2.5mm 4.0mm	0 … 2.0mm 0 … 3.5mm 0 … 6.0mm
FH4-1 FH4-190		1.0mm 1.5mm 2.5mm 4.0mm	0 ... 1.3mm 0 … 2.0mm 0 … 3.5mm 0 … 6.0mm
FH-4M	0 - 6 mm 0 - 0.236"	1.5mm 1.5mm Magnetic 2.5mm 3.0mm Magnetic 4.0mm	0 … 2.0mm 0 … 5.0 mm 0 … 3.5mm 0 … 9.0 mm 0 … 6.0 mm
FH4-WIRE FH4-WIRE-90		⌀ 0.66mm Wire ⌀ 1.15mm Wire	0 … 7.0 mm 0 … 13.0 mm

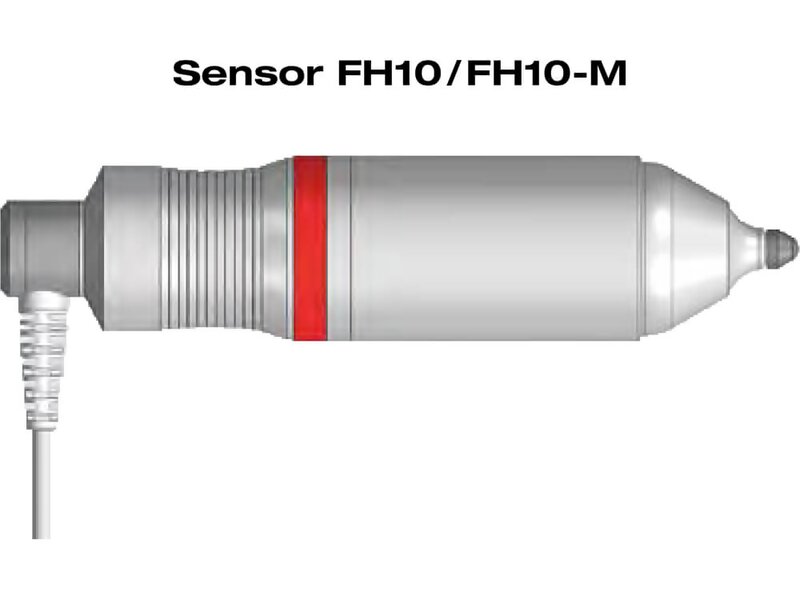

FH10	0 - 13 mm 0 - 0.512"	2.5mm 4.0mm 6.0mm	0 … 4.0mm 0 … 7.0mm 0 … 7.0mm
FH10-M		2.5mm 4.0mm 4.0mm Magnetic 6.0mm 6.0mm Magnetic	0 … 4.0mm 0 … 7.0mm 0 … 16.0mm 0 … 7.0mm 0 … 24.0mm

Note 1: Includes additional calibration with 1mm diameter balls for use in small concave areas
Note 2: Use of Magnetic balls allows for extended measuring range

line
Downloads
line

ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge - Data Sheet

ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

ElektroPhysik 80-190-0000 MiniTest-FH Magnetic Wall Thickness Gauge for Plastics, Glass, Titanium, and more

$6,145.00

Recommended Accessories

PRICE

ElektroPhysik 80-178-0000 FH2 Magnetic Wall Thickness Probe, 0-2.3mm / 0.09" for use with MiniTest FH

$4,395.00

ElektroPhysik 80-178-0100 Probe FH2-90 Magnetic Wall Thickness Probe, 0-2.3mm / 0.09" for use with MiniTest FH

$4,395.00

ElektroPhysik 80-178-0200 Probe FH2-M Magnetic Wall Thickness Probe, 0-4.5mm / 0.17" for use with MiniTest FH

$4,895.00

ElektroPhysik 80-178-0300 Probe FH2-M-90 Magnetic Wall Thickness Probe, 0-4.5mm / 0.17" for use with MiniTest FH

$4,895.00

ElektroPhysik 80-174-0600 Probe FH4 Magnetic Wall Thickness Probe, 0-6mm / 0.23" for use with MiniTest FH

$4,395.00

ElektroPhysik 80-174-1000 Probe FH4-90 Magnetic Wall Thickness Probe, 0-6mm / 0.23" for use with MiniTest FH

$4,395.00

ElektroPhysik 80-174-0300 Probe FH4-1 Magnetic Wall Thickness Probe, 0-6mm / 0.23", for use with MiniTest FH

$4,600.00

ElektroPhysik 80-174-1100 Probe FH4-1-90 Magnetic Wall Thickness Probe, 0-6mm / 0.23", for use with MiniTest FH

$4,600.00

ElektroPhysik 80-174-0500 Probe FH4-M Magnetic Wall Thickness Probe, 0-9mm / 0.35" for use with MiniTest FH

$4,895.00

ElektroPhysik 80-174-1200 Probe FH4-M-90 Magnetic Wall Thickness Probe, 0-9mm / 0.35" for use with MiniTest FH

$4,895.00

ElektroPhysik 80-174-0650 Probe FH4cc Magnetic Wall Thickness Probe with Interchangeable Cap, 0-6mm / 0.23"

$4,395.00

ElektroPhysik 80-174-1050 Probe FH4cc-90 Magnetic Wall Thickness Probe with Interchangeable Cap, 0-6mm / 0.23"

$4,395.00

ElektroPhysik 80-174-0510 Probe FH4cc-M Magnetic Wall Thickness Probe with Interchangeable Cap, 0-9mm / 0.35"

$4,895.00

ElektroPhysik 80-174-1250 Probe FH4cc-M-90 Magnetic Wall Thickness Probe with Interchangeable Cap, 0-9mm / 0.35"

$4,895.00

ElektroPhysik 80-174-0050 Probe FH4-WIRE Magnetic Wall Thickness Probe, 0-12.7mm / 0.5" for use with MiniTest FH

$4,395.00

ElektroPhysik 80-174-1300 Probe FH4-WIRE-90 Magnetic Wall Thickness Probe, 0-12.7mm / 0.5" for use with MiniTest FH

$4,395.00

ElektroPhysik 80-175-0900 Probe FH10 Magnetic Wall Thickness Probe, 0-13mm / 0.51" for use with MiniTest FH

$4,870.00

ElektroPhysik 80-175-0600 Probe FH10-M Magnetic Wall Thickness Probe 0-24mm / 0.94" for use with MiniTest FH

$5,340.00

ElektroPhysik 80-175-1400 Probe FH10cc Magnetic Wall Thickness Probe with Interchangeable Cap, 0-13mm / 0.51"

$4,870.00

ElektroPhysik 80-175-0601 Probe FH10cc-M Magnetic Wall Thickness Probe with Interchangeable Cap, 0-24mm / 0.94"

$5,340.00

ElektroPhysik 82-190-0001 Foot Switch Accessory for FH Series Thickness Gauge (80-190-0000, only)

$505.00

ElektroPhysik 82-174-0016 FH-BALLS-10, 1.0 mm diameter Non-Magnetic Steel Balls - 100 pieces

$50.00

ElektroPhysik 82-174-0004 FH-BALLS-15, 1.5 mm diameter Non-Magnetic Steel Balls - 100 pieces

$50.00

ElektroPhysik 82-175-0004 FH-BALLS-25, 2.5 mm diameter Non-Magnetic Steel Balls - 100 pieces

$50.00

ElektroPhysik 82-175-0005 FH-BALLS-40, 4.0 mm diameter Non-Magnetic Steel Balls - 50 pieces

$55.00

ElektroPhysik 82-175-0006 FH-BALLS-60, 6.0 mm diameter Non-Magnetic Steel Balls - 25 pieces

$65.00

ElektroPhysik 82-175-0014 FH-BALLS-90, 9.0 mm diameter Non-Magnetic Steel Balls - 10 pieces

$50.00

ElektroPhysik 82-174-0029 FH-BALLS-15M, 1.5 mm diameter Magnetic Steel Balls - 25 pieces

$95.00

ElektroPhysik 82-174-0030 FH-BALLS-30M, 3.0 mm diameter Magnetic Steel Balls - 20 pieces

$105.00

ElektroPhysik 82-175-0023 FH-BALLS-40M, 4.0 mm diameter Magnetic Steel Balls - 20 pieces

$105.00

ElektroPhysik 82-175-0024 FH-BALLS-60M, 6.0 mm diameter Magnetic Steel Balls - 20 pieces

$110.00
