Built-in Datalogger with 5000 data values (500 values in 10 batches ) with USB Output
Includes "Scan-Mode" to display MIN and MAX values at 10 readings/second
Automatic identification of probes with Auto Probe Zero
Several Transducers are optionally available including one for High Temperature materials (350 °C)
Includes built-in datalogger with USB output

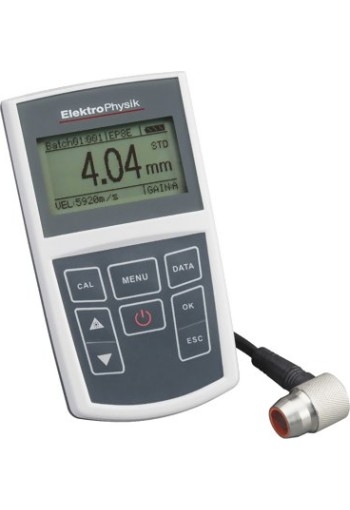

Sturdy and accurate ultrasonic thickness gauge based on the ultrasonic pulse run-time method.
6 ultrasonic probes with frequencies ranging between 2 and 10 MHz in different designs offer a broad spectrum of applications and thickness measurements ranging from 0.65 mm to 500 mm. A high temperature ultrasonic probe is also available, designed for measurement of hot materials with temperatures of up to 350 °C.
The device is equipped for automatic detection of the intelligent ultrasonic probes and re-calibration is not required upon switching probes. The calibration data of the sensor is saved in the probe.
Uninterrupted scanning of a part for thinning is possible at the minimum mode.
Features
- Includes Factory "Works" Calibration Certificate
- NIST Traceable Calibration Certificate optionally available at additional cost
- Suitable for measurement of various materials including steel, stainless steel, aluminum, glass, plastics (PS/PE)
- Built-in Datalogger with 5000 data values (500 values in 10 batches ) with USB Output
- Includes "Scan-Mode" to display MIN and MAX values at 10 readings/second
- Adjustable units inch/mm
- Resolution of 0.001" (0.01 mm)
- Automatic identification of probes
- Automatic Probe Zero function
- Uses Pulse-Echo Principle of Ultrasonics
- Sensitivity can be set to "Auto" or "Manual"
- Several Transducers are optionally available including one for High Temperature materials (350 °C)
- Warranty 1-Year
- Made in Germany
Specifications
| Measuring range | Pulse Echo: With standard transducer U5.0: 0.8 - 350 mm (0.03 - 13.8") (For ranges of other transducers see table) |
| Resolution | 0.01mm (0 – 99.9 mm), 0.1(> 100 mm) |
| Display | 128 x 64 pixels with backlight |
| Velocity Range | 0.0492 to .3937 in/μs. 1250 to 10,000 meters/sec preset sound velocity of 9 materials |
| Measuring mode | Pulse-Echo
Standard: normal operation | Minimum : detection of thinnest point | Difference: deviation of reading to preset value| Alarm
Scan
High speed scan for high temperature surfaces |
| Probe | Standard transducer U5.0: 8mm (0.31") (For diameter of other transducers see table) |
| Operation Temperature | -20 to 50°C (-4 to 122°F) |
| Cable | Software and data transmission cable |
| Battery Type | Two AA batteries |
| Battery Life | more than 80 hours under continuous operation |
| Weight | approx. 6.70 oz (190 g) |
| Size | 5.1 x 2.9 x 0.94" (130 X 73 X 24 mm) |
| Accessories Included | U5.0 5 MHz standard transducer, Operating instructions, two 1.5V AA batteries, Plastic carrying case, Coupling liquid (200 ml), cable |
| Data storage | 10 groups with max. 500 values each |
| Data interface | USB |
| Calibration | automatic |
| Housing Protection | IP40 |
Range
| Type | Diameter | Frequency | Measuring Range |
| U5.0 | 8 mm | 0.31" | 5.0 MHz | 0.8 – 350 mm | 0.031 - 13.8" |
| U2.0 | 12 mm | 0.47" | 2.0 MHz | 2.0 – 500 mm | 0.079 - 19.7" |
| U7.5 | 6 mm | 0.24" | 7.5 MHz | 0.65 - 50 mm | 0.026 - 1.97" |
| U10.0 | 4 mm | 0.16" | 10.0 MHz | 0.65 – 20 mm | 0.026 - 0.79" |
| U5.0HT | 13 mm | 0.51" | 5.0 MHz | 3.0 – 200 mm | 0.12 - 7.87" |
| Type | Material Temperature | Application |
| U5.0 | -12 to 60 °C | on flat surfaces or huge curvature radii |
| U2.0 | -12 to 60 °C | rough surfaces such as cast iron |
| U7.5 | -12 to 60 °C | thin w all thickness and small curvature radii |
| U10.0 | -12 to 60 °C | small tube diameters |
| U5.0HT | -12 to 350 °C | for temperatures up to 350 °C |
