Eddy current testing
Non-destructive measurement
Measuring range up to 300 mm

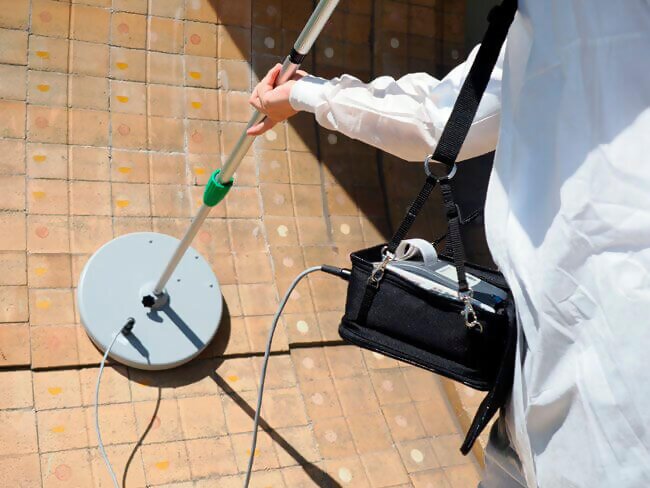

The ElektroPhysik StratoTest-4500-C Kiln Lining Thickness Gauge is a hand-held instrument designed to measure the thickness of refractory linings in kilns used in cement and brick production. Instead of the traditional method of drilling approx. 200 holes for inspection, the StratoTest only requires one single borehole for calibration, and from that point on it measures the lining thickness non-invasively.
The electromagnetic measuring process is non-destructive and without danger to the operator. StratoTest 4500 C allows the operator to determine the lining thickness of cement, dolomite, magnetite, or fireclay bricks in rotary kilns quickly and thus helps to significantly reduce inspection times and effort.
Refractory bricks undergo degradation resulting in a decrease in mechanical properties. In order to monitor the thickness of these bricks, ElektroPhysik StratoTest-4500-C Kiln Lining Thickness Gauge is the ideal tool to determine the state of the lining in industrial furnaces and rotary kilns.
ElektroPhysik StratoTest-4500-C Kiln Lining Thickness Gauge works on the electromagnetic measurement principle using the metal of the kiln shell as a measuring reflector. When the disc-shaped probe approaches the kiln shell, its electromagnetic files change depending on the distance to the metal.
Kit Contents

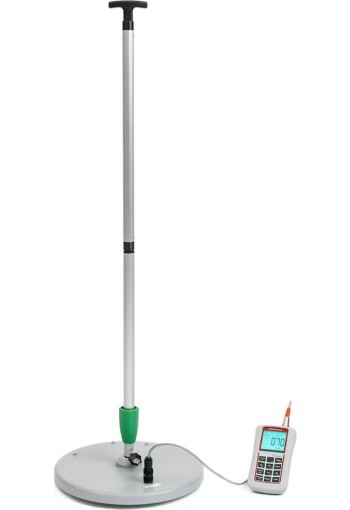

- StratoTest 4500 control unit
- Measuring probe N 300ST
- Probe handle and connecting cable
- Carrying case for use on site
- Plastic transport case
Features
- Non-destructive measurement
- Measuring range up to 300 mm
- Immediate display of brick thickness
- Special measuring technique to eliminate influences of metal inclusions or microstructural change
- Easy data transfer via USB and Bluetooth
Specifications
| Measuring Principle | Eddy Current testing |
| Material to be Measured | Electrically non-conducting refractory bricks (not suitable for sheet metal construction or reinforced refractory concrete) |
| Measuring Range | 0 - 30 cm N300ST standard probe |
| Resolution | 0.1 cm |
| Display | LCD Panel |
| Data Memory | DIRECT mode: limited to the size of SD card
ZONE-SECTION mode: more than 1,000,000 individual readings and 9,801 separate measurement series
StratoTest C generally groups reading in series of measurements in one memory batch. StratoTest C features one DIRECT memory and 99 Zone memories (Zone/ APPL) combined with 99 memories for series of measurements (Section / Batch). |
| Power supply | 3 x AA (LR05) battery |
| Battery | ~ 150 hours (working without display illumination) |
| Ambient temperature | gauge: 0 °C - 60 °C | probe: 0 °C - 70 °C |
