Western Instruments N88-9B-M Basic Bridging Pit Depth Gauge 5-1/2" Long, Metric Dial Indicator, for Measuring Corrosion and Material Loss

See More Bridging Pit Depth Gauges

Western Instruments N88-9B-M Basic Bridging Pit Depth Gauge 5-1/2" Long, Metric Dial Indicator, for Measuring Corrosion and Material Loss

See More Bridging Pit Depth Gauges
Price:
$567.00
    warrenty

    Product Description
    Western Instruments N88-9B Basic Bridging Pit Depth Gauge, Measures Corrosion and Material Loss
    Measuring Range: 0.0-0.5" (0.0 - 12.7 mm)
    Resolution: 0.001" (0.01 mm)
    Dial Diameter: 1.4" (35.5 mm)
    Available with dial or digital indicators

    The Western Instruments N88-9B Basic Bridging Pit Depth Gauge allows the Corrosion Inspector to Span over or Cantilever into Large Areas of Weight Loss Corrosion, to obtain accurate and consistent measurements, or cross sections, of Pit Depth. As conditions dictate, the operator can simply use the Main Blade or can assemble the Bridging Pit Gauge® up to an over all length of 28½” (725mm).

    The contact Surfaces (Blades) of the Bridging Pit Gauge® are fitted with an exclusive Knife Edge, so they can be used on Flat, ID (Convex), and OD (Concave) Surfaces, where a flat or notched contact surface can introduces error on Convex Surfaces. Like our Standard Pit Gauges, the Knife Edge gives the operator a clear view of the contact point, and the area being inspected.

    With the addition of the optional Magnetic Hold Downs, the operator uses their width to quickly align the Bridging Pit Gauge System® to a curved surface. This leaves his hands free to scan through very large areas of weight loss corrosion. This holds true when the Bridge Elements have been assembled with a slight contour on an irregular surface.

    line

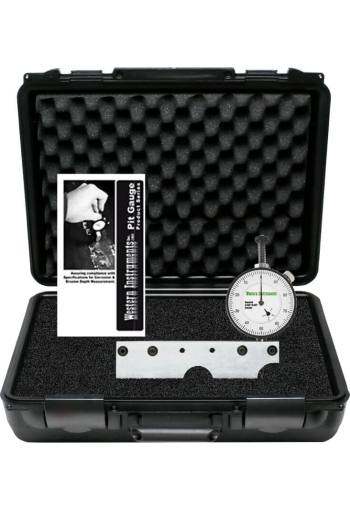

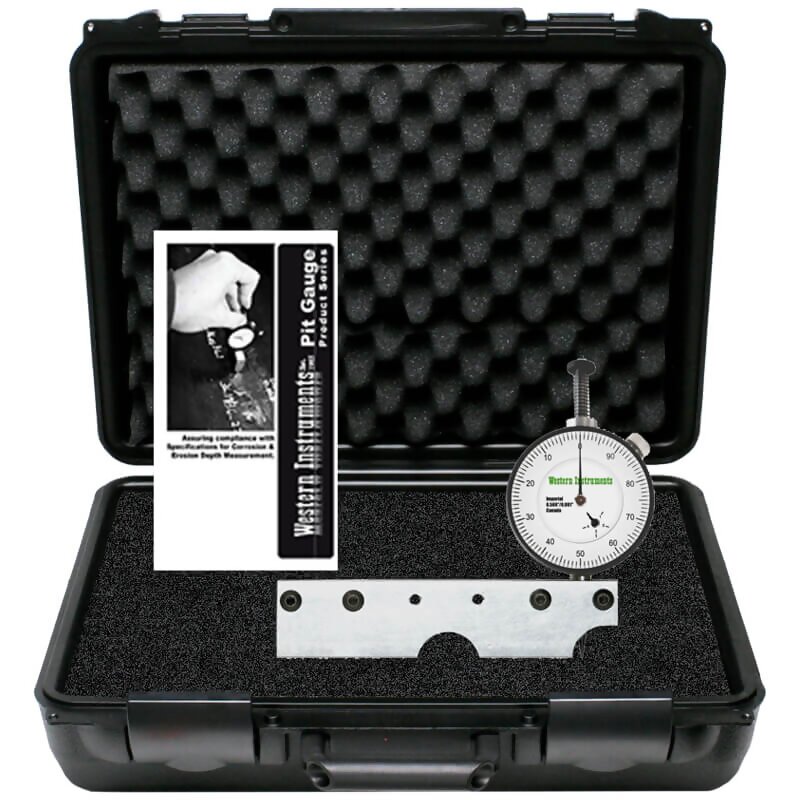

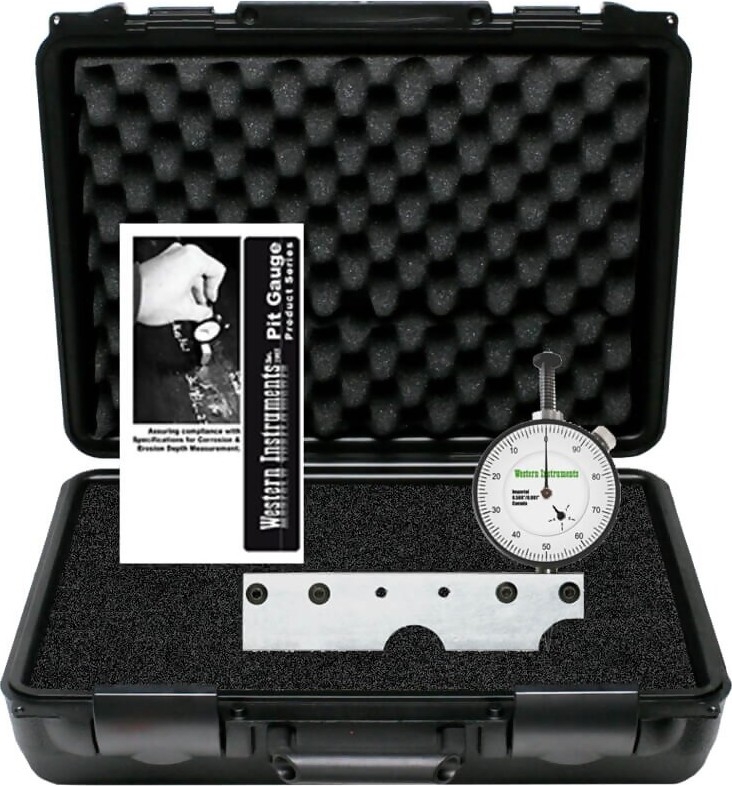

    Kit Contents
    line

    • N88-9 Bridging Pit Gauge Indicator (Inch, Metric or Digital)
    • N88-9-1 Main Blade - Center and End Dial Indicator Mounting Positions, Fitted Permanent Magnets. Cutaway Nose for next to welds. 5.5” (144mm) long.
    • N88-9-7 Fastener Kit (Hardware) - Fasteners, Allen Key, Nylon Thumb Screws, #1 Contact Point-Standard.
    • N88-9-8 Carrying Case - Hard Sided Plastic Carrying Case for entire kit
    • Operator Manual


    line
    Features
    line

    Zeroing Dial Indicator

    • The vertical position of the Contact Point, needs to be Zeroed with respect to the Knife Edge of the Blade.
    • Zeroing can be accomplished in two ways; by adjusting the Height of the Dial Indicator in the Blade; or by Rotating the outer Bezel Scale while pressing on the Plunger onto a flat surface.

    Scale Zeroing

    • To quickly check the Zero Point of the Dial indicator, place the Blade on a representative smooth surface.
    • Gently press the Plunger, until the contact point touches the surface.
    • While the contact point is on the surface, loosen the Bezel Lock, and rotate the Bezel Scale until it reads '0' with respect to the pointer.

    Height Zeroing

    • Loosen the Fastener(s) holding the Dial Indicator in place.
    • Hold the Blade firmly on a Flat Surface, and gently press the body of the Dial Indicator down until the contact point touches the flat surface.
    • Carefully re-tighten the Clamp Fastener(s) or the Set Screw.
    • Any fine zeroing can be done by rotating Bezel Scale on the Indicator.
    • Height Zeroing should be done, whenever the unit is put into to use.

    Zeroing a Digital Indicator

    • Digital Indicators can be Height Zeroed or Positioned in the same way as a Mechanical Dial Indicator.
    • To Zero the Digital Indicator simply press the Zero Button when the Contact Point is on a reference point. If the Digital Indicator is Height Zeroed, press Zero when the Plunger is fully retracted.
    • To select Metric or Imperial Measurement, simply press the mm/in Button.Whennot in use, press the On/Off Button to turn the Indicator off.

    Indicator Positioning

    • The position (or rotation) of the Dial indicator can be changed by simply loosening the Clamp Fasteners or Set Screw, and rotate the Dial Indicator about the Blade.
    • After the Dial Indicator is rotated, the unit should be Dial Zeroed.

    Magnetic Hold Downs

    • Magnetic Hold Downs are intended for Scanning with a Bridging Pit Gauge®, however they can be used on any of the Jr. Bridging Pit Gauge® Group, with a diminished range of motion. Magnetic Hold Downs also provide the inspector with increased mobility, as he is not required to support the Bridging Pit Gauge.

    line
    Specifications
    lineDial and Digital Indicators

    Metric Dial IndicatorRange:
    Resolution:
    Dial Diam.
    0.0-12.7 mm
    0.01 mm
    35.5 mm
    Imperial Dial IndicatorRange:
    Resolution:
    Dial Diam.
    0.0-0.5"
    0.001"
    1.4"
    Digital IndicatorRange:
    Dial Diam.
    0.0-0.5"
    0.0-12.7 mm
    56 mm, 2.2"
    Measuring Corrosion (Depth)
    1-Standard Tip0.040" diam.#1 Contact Point-Standard N88-S
    2-Conical Tip0.010" diam.#2 Contact Point-Conical N88-C
    3-Needle Tip0.005" diam.#3 Contact Point-Needle N88-N

    * Western offers a variety of Contact Points, which are all 0.625" (16mm) long.Any ADG Contact point can be used with our special dial indicators, but a different length may affect Height Zeroing, or the vertical position of the Dial Indicator. Contact Points are easily replaced, by extending the Contact Point , and turning it counter clockwise.


    line
    Related Products
    line

    N88-9
    Bridging Pit Gauge

    • N88-9 Bridging Pit Gauge
    related

    line

    N88-11
    Jr. Bridging Pit Gauges

    • Manufacturer: Western Instruments
    related

    line

    N88-11B
    Jr. Bridging Pit Gauge Basic

    • Manufacturer: Western Instruments
    related

    line

    N88-11P
    Jr. Bridging Pit Gauge Plus
    • Manufacturer: Western Instruments
    related

    line

    N88-11S
    Jr. Bridging Pit Gauge Super

    • Jr. Bridging Pit Gauge Super - up to 27 inches (686 mm) long
    related

    line
    Downloads
    line

    Western Instruments N88-9B Bridging Pit Gauge - Data Sheet
    Western Instruments N88-9B Basic Bridging Pit Gauge - Literature
    Western Instruments N88-9B Bridging Pit Gauge - Kit Content Details
