Imada Z2 Digital Force Gage

See More Digital Force Gages

This product has been replaced by the Imada ZTA Series

The Z2 has been replaced by the ZT Series

Programmable Digital Force Gauge with Output

± 0.2%

7 Ranges up to 220 lbs

RS-232C, Digimatic and Analog outputs

Reversible display

7 Ranges up to 220lbs

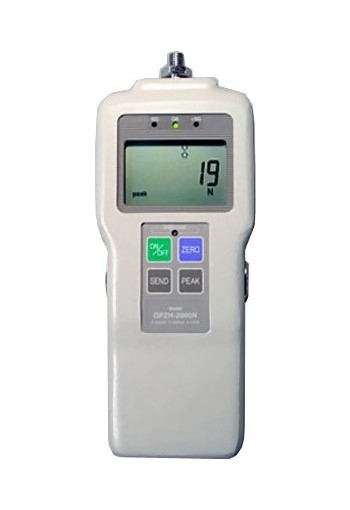

The new Check-Line model Z2 is a high performance, digital force gauge which offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1000 values in memory, which can be transmitted using the Digimatic or serial output ports. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons.

Connect a Z2 force gauge with an MX Series test stand and enable force controlled testing. Force control can automatically stop testing when the force value reaches the high setpoint programmed on the Z2 force gauge, or maintain the force between the Z2 High and Low setpoints. Force control is ideal for fatigue or non-destructive testing.

line
Photo Gallery
line

line
Features
line

Ergonomically-designed, rugged die-cast aluminum housing
"Zero Set" to zero the gauge in all operating positions (Tare)
Operates on rechargeable NiCd batteries or AC adapter
Overload protection 200 % full scale
For hand-held use or mounting on test stands
Display can be reversed for inverted use: e.g. on teststands
Output signals (RS 232 C, analog and Mitutoyo Digimatic)
Quick display update rate of 20 times/s
User selectable units: N, kgf (gf) and lb (oz)
Easy to use
Selectable Modes
- Real Time (to display load transients)
- Peak Modes (to capture the peak force achieved during a test)
Supplied with NIST Calibration certificate
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
2 Year Warranty

line
Force Ranges
line

Model	Capacity	Resolution
Z2-0.4	7.00 oz 200 g 2 N	0.01 oz 0.1 g 0.001 N
Z2-1	18 oz 500 g 5 N	0.01 oz 0.1 g 0.001 N
Z2-4	4.4 lb 2 Kg 20 N	0.001 lb 0.001 Kg 0.01 N
Z2-11	11 lb 5 Kg 50 N	0.01 lb 0.001 kg 0.01 N
Z2-44	44 lb 20 Kg 200 N	0.01 lb 0.01 Kg 0.1 N
Z2-110	110 lb 50 Kg 500 N	0.1 lb 0.01 kg 0.1 N
Z2-220	220 lb 100 Kg 1000 N	0.1 lb 0.1 Kg 0.1 N

line
Dimensions
line

dimensions

line
Standard Attachments
line

line
Special Attachments
line

line
Complete Kit
line

All Z2 gauges are sold as complete kits that include the gauge, hard plastic carrying case, AC adapter/charger, and attachments (flat head, conical, chisel, notched, small hook, large hook, Y-fork, and extension rod). Built-in NiCad rechargeable batteries.

complete kit

line
Specifications
line

Displacement	0.2 mm
Accuracy	± 0.2% Full scale ± 1 digit
Selectable units	N, Kgf (gf), lb (oz)
Display	4 digit, 12 mm high
Overload capacity	200% Full scale, display flashes beyond 105% full scale
Zero adjustment (Tare)	10% Full scale
A/D Converter	14 bit
Output signal	RS 232 C (8, 1, N, 2400), analog ± 1 V DC, Mitutoyo Digimatic
Displacement at full scale capacity	0.10 mm
Temperature range	32° to 100°F (0° to 40°C)
Air humidity	85% RH, max.
Low battery indicator	Display flashes when battery is low
Power supply	Rechargeable NiCd battery pack and/or 230 AC Adapter
Housing dimension	215 x 65 x 51 mm (L x W x H)
Weight, net (gross)	approx. 100% g (1300 g)
Warranty	2 Years

line
Related Products
line

SW-1
Data Acquisition Software for Force Gauges & Torque Gauges

Full SPC and graphing capabilities
Automates your data collection
Provides a running log of all measurements along with a chart of the data as well as statistical information
