Name: Shimpo RE2B-600F Rotary Pulse Generator, 600 ppr, Dual Quadrature Output
Brand: Shimpo
SKU: 1175
Price: 318.00 USD
Availability: InStock

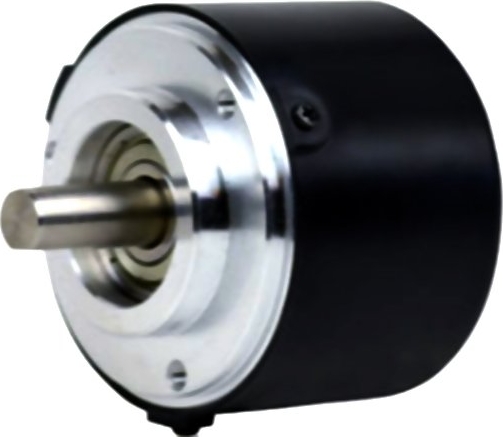

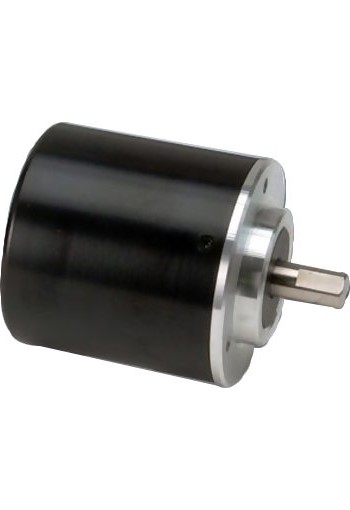

Shimpo RE1B Rotary Pulse Generator

Shimpo RE Series Encoders are ideal for usage with SHIMPO's Panel Mount Tachometers and Counters

RE1B-60F:
Single logic output (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max)) 60 digital output pulses per shaft revolution. Maximum speed: 5000 rpm. 10' (3m cable)

RE1B-600F:
Single logic output (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max)) 600 digital output pulses per shaft revolution. Maximum speed: 3000 rpm. 10' (3m cable)

RE1B-1000F:
Single logic output (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max)) 1000 digital output pulses per shaft revolution. Maximum speed: 1800 rpm. 3' (.91m cable)

RE2B-30F:
Dual logic output (90° out of phase) for quadrature applications. (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max) / Logic "0"... less the 0.4 V, 30 mA max.) A zero position output for shaft position reference. 30 digital output pulses per shaft revolution. Maximum speed: 5000 rpm. 10' (3m cable)

RE2B-60F:
Dual logic output (90° out of phase) for quadrature applications. (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max) / Logic "0"... less the 0.4 V, 30 mA max.) A zero position output for shaft position reference. 60 digital output pulses per shaft revolution. Maximum speed: 5000 rpm. 10' (3m cable)

RE2B-600F:
Dual logic output (90° out of phase) for quadrature applications. (Logic "1" ...supply voltage minus 2.5 V or more, 10 mA (max) / Logic "0"... less the 0.4 V, 30 mA max.) A zero position output for shaft position reference. 600 digital output pulses per shaft revolution. Maximum speed: 3000 rpm. 1.6' (.49m cable)

Specifications

Model	RE1B-60F	RE1B-600F	RE1B-1000F	RE2B-30F	RE2B-60F	RE2B-600F
Resolution	60 pulses per revolution	600 pulses per revolution	1000 pulses per revolution	30 pulses per revolution	60 pulses per revolution	600 pulses per revolution
Maximum Speed	5000 rpm	3000 rpm	1800 rpm	5000 rpm	5000 rpm	3000 rpm
Power Supply	4.75 – 30 VDC, 50 mA (max)
Output Voltage	logic "1" …Vs – 2.5 V, 10 mA (max)
Shaft Torque	0.41 oz – in, 30 g-cm (max)
Shaft Allowable Load	Overhung load 11 lbs. (Thrust load 6.6 lbs.)
Cable Length	10'	10'	3'	10'	10'	1.6'
Operation Temperature	14 to 122 °F (-10 to 50 °C)
Weight	8.8 oz (250 g)
Construction	Die-cast aluminum housing
Mounting	Base or face mounting
